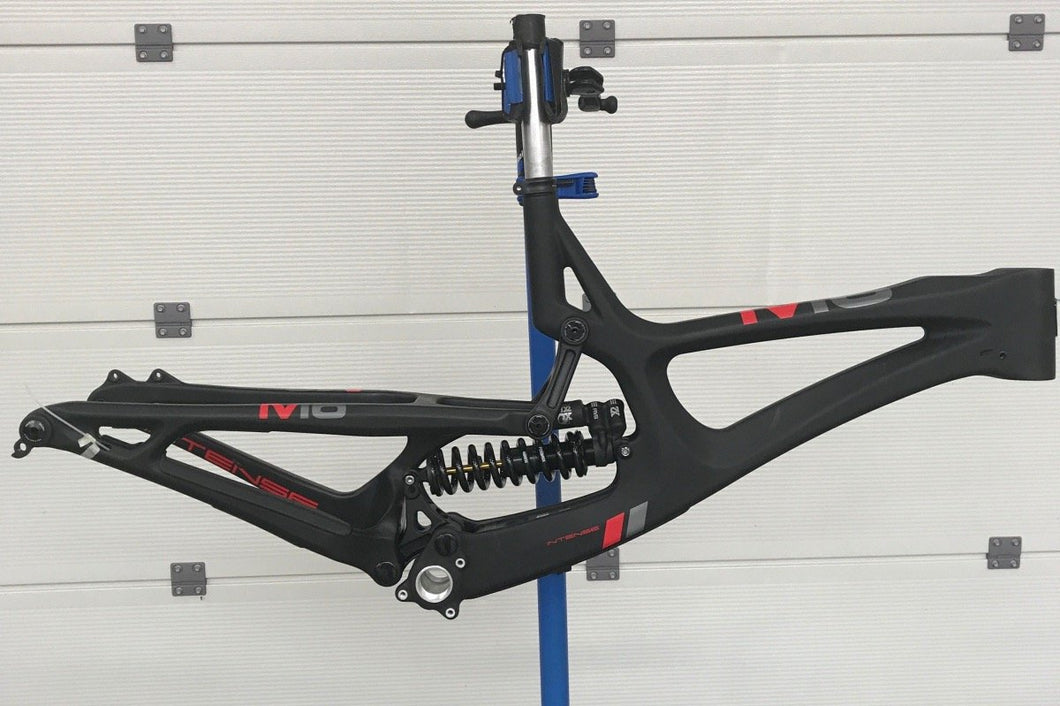

*This frame has been previously built as a showroom display bike, will have slight cosmetic markings from where components have previously been fitted.
The M16 is a World-Class, downhill racing machine, at 9.5 inches of rear travel, with geometry developed in conjunction with Intense Factory Racing Team riders Bernat Guardia, Jack Moir, Luca Cometti and Ferran Jorba, as well as Intense test pilots Chris Kovarik, Shaun Palmer and Claire Buchar.
Key Features
- 240mm Rear Travel
- 200mm Front Travel
- New Fox DHX2 Performance Elite Shock
- World Cup tested geometry
- 157x12mm rear spacing
- Custom carbon protectives and bottom bracket frame stays and mud guard
Geometry
M16C |
S |
M |
L |
XL |
|
Wheel Base |
A |
1194mm |
1219mm |
1245mm |
1265mm |
Top Tube Length |
B |
565mm |
591mm |
616mm |
634mm |
Chain Stay Length |
C |
445mm |
445mm |
445mm |
445mm |
Head Tube Length |
D |
109mm |
115mm |
122mm |
132mm |
Head Tube Angle |
E |
63.5Àö |
63.5Àö |
63.5Àö |
63.5Àö |
Reach |
F |
391mm |
413mm |
436mm |
452mm |
Stack |
G |
587mm |
592mm |
598mm |
607mm |
BB Height |
H |
365mm |
365mm |
365mm |
365mm |
Seat Tube Angle (Effective) |
I |
73.3Àö |
73.3Àö |
73.3Àö |
73.3Àö |
Seat Tube Angle (Actual) |
J |
59.5Àö |
59.5Àö |
59.5Àö |
59.5Àö |
Seat Tube Length |
K |
416mm |
440mm |
455mm |
457mm |
Standover Height |
L |
797mm |
803mm |
809mm |
816mm |
